Indexing Chuck/Hydraulic feed tube

IC, TB-IC

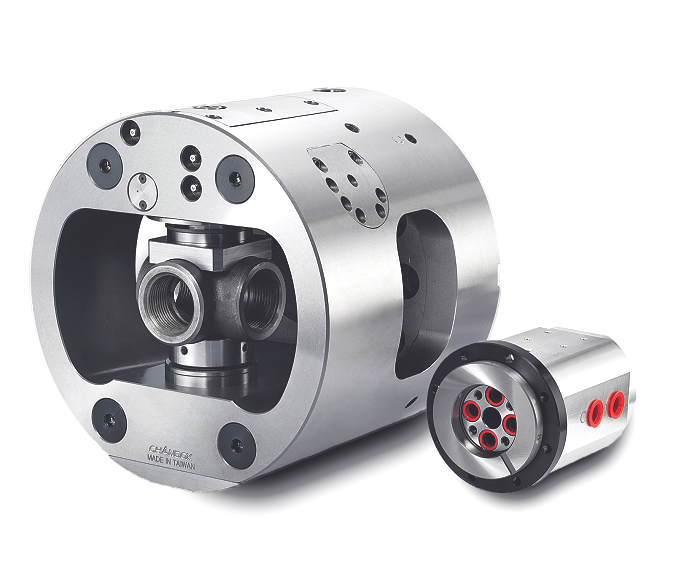

Indexing Chuck/Hydraulic feed tube

  • NEW
  • PATENT PRODUCT:M584231
  1. Specialize in multi-axis manufacturing requirements, ex: Valve, Cross bearing, hose joint...etc.
  2. Automatic mechanism: With the special hydraulic feeder and automatic control unit, the chuck could 90 indexing automatically during the spindle turning.
  3. Centrifugal force compensation: Compensation structure could reduce the clamping force lost during high speed turning and stabilize the work-clamping.
  4. The optimal structure design provides the best rigidity and precision.

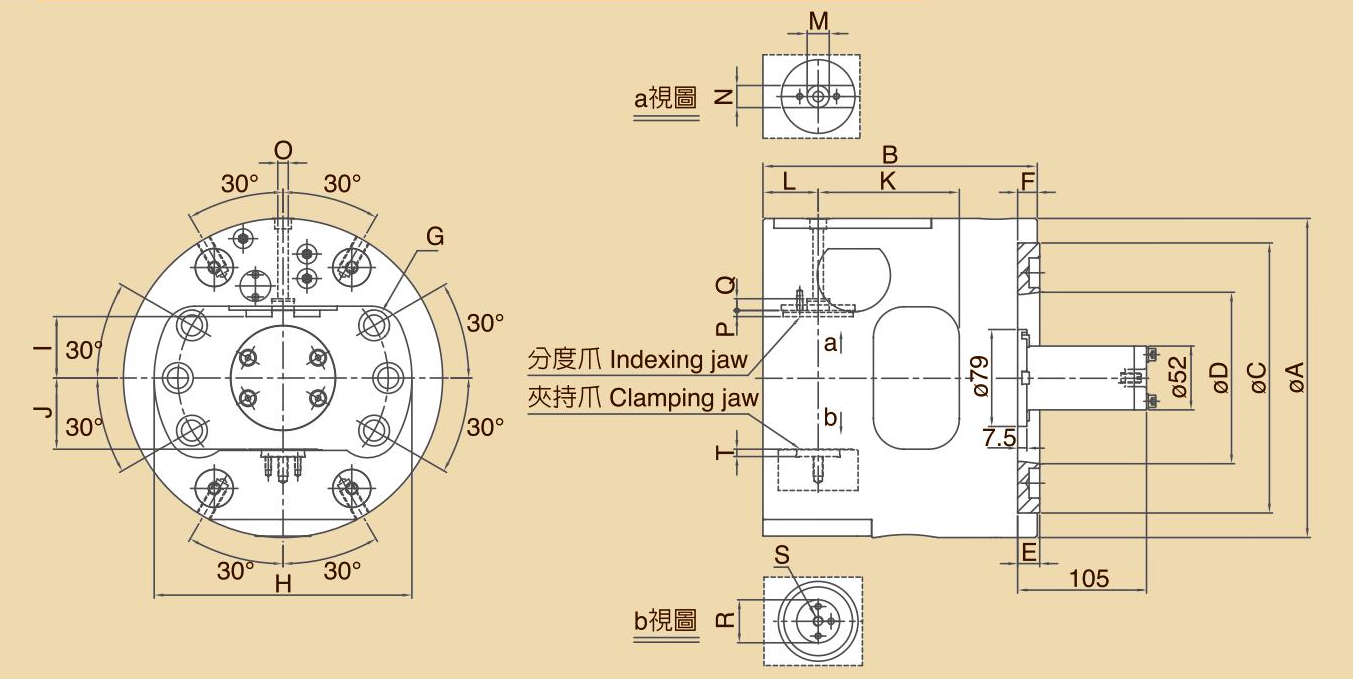

DIMENSIONS

Indexing Chuck/Hydraulic feed tube

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Index Angle Piston Area
(cm2)		 Plunger
Stroke
(mm)		 Max Hydr.
Pressure
kgf/cm2(MPa)		 Max.Speed
r.p.m(min(-1)		 Max.Gripping
Force
kgf(kN)		 Matching
Cylinder		 Gripping Range
Max. rotation dia		 Gripping Range
Thickness
IC-260 4×90° 43 18 51(4.9) 3600 2000(19.6) TB-IC 200 70
MODEL / SPEC A B C
D E F G H I
IC-260 260 223.5 220 139.719 18 16 6-M16×2P(PCDø171.4) 210 50
MODEL / SPEC J
max.		 J
min.		 K L M N
 O
 P
 Q S øR T
IC-260 58 40 115 45 18 18 8.5 5 9.55 M8×1.25P 35 6

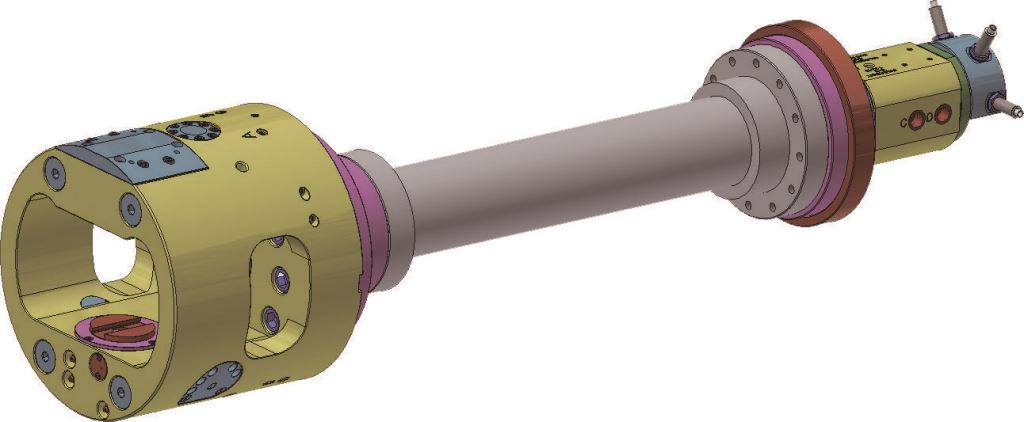

OPERATION EXAMPLE

hydraulic feed tube
