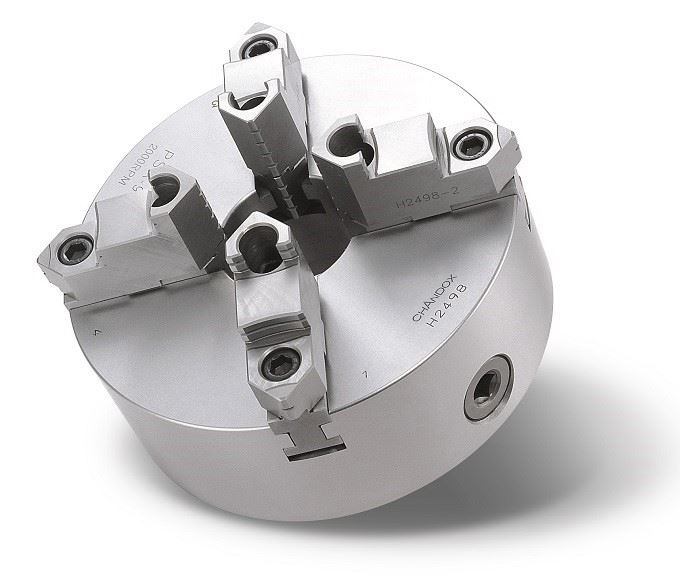

4-Jaw Powerful Type Scroll Chucks

PSK

4-Jaw Powerful Type Scroll Chucks

PSKB：Larger Through Hole

DIMENSIONS

4-Jaw Powerful Type Scroll Chucks

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC A B C D E F G H J K L
PSK-07 193 76 155 172 58 5 3-M10×1.5P 82 28 43 11
PSK-09 233 84 190 210 70 5.5 3-M12×1.75P 93 32 50 12
PSK-12 310 96 260 285 105 7 3-M12×1.75P 118 40 56 14
PSK-16 405 122 345 375 160 8 6-M14×2P 150 50 75 15
PSK-20 500 140 420 458 205 5.5 6-M16×2P 140 55 84 19
PSKB-25 630 140 545 586 320 6.5 6-M16×2P 140 70 92 19
MODEL / SPEC Max.Speed
r.p.m(min-1)		 Max.Gripping
Diameter
O.D.Clamping		 Max.Gripping
Diameter
I.D.Clamping		 Weight
(kg)
PSK-07 2000 ø8-ø180 ø62-ø170 12.7
PSK-09 2000 ø11-ø220 ø70-ø210 20.8
PSK-12 1800 ø15-ø300 ø90-ø290 43
PSK-16 1500 ø30-ø400 ø110-ø380 86.7
PSK-20 1000 ø25-ø480 ø125-ø460 149
PSKB-25 850 ø160-ø630 ø274-ø646 215
