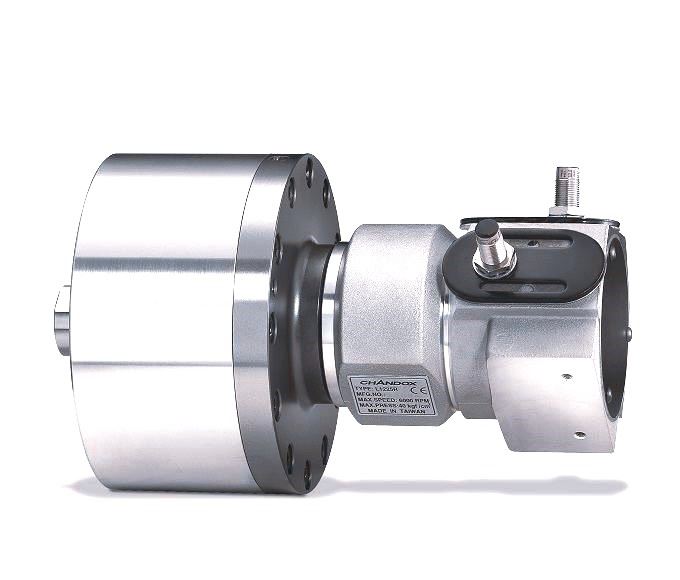

Solid Rotary Hydraulic Cylinder(BUILT-IN CHECK VALVE & SENSOR)

L-RE

Solid Rotary Hydraulic Cylinder(BUILT-IN CHECK VALVE & SENSOR)

DIMENSIONS

Solid Rotary Hydraulic Cylinder(BUILT-IN CHECK VALVE & SENSOR)

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Piston Stroke
(mm)		 Max.Speed
r.p.m(min-1)		 Moment of Inertia
(kg·m2)		 Oil Leakage
Rate
(ℓ/min)		 Max.
Pressure
kgf/cm2
(MPa)		 Piston Area
Push Side
(cm2)		 Piston Area
Pull Side
(cm2)		 Max.
Operating
Force
Push Side
kgf(kN)		 Max.
Operating
Force
Pull Side
kgf(kN)		 Weight
(kg)
L1020RE 20 6000 0.013 0.8 40(3.9) 84 79 3000(29.4) 2900(28.4) --
L1225RE 25 6000 0.023 0.8 40(3.9) 120 113 4400(43.1) 4100(40.2) 9.7
L1530RE 30 5500 0.048 0.8 40(3.9) 174 160 6200(60.8) 5700(55.9) 13.7
L2035RE 35 5500 0.098 0.8 40(3.9) 312 290 11200(109.8) 10400(102.0) 23.3
MODEL / SPEC A B C D E
(h7)		 F G
(H8)		 H
L1020RE 105 20 135 100 80 30 21 M20×2.5P
L1225RE 125 25 160 130 110 35 25 M24×3P
L1530RE 150 30 190 130 110 45 31 M30×3.5P
L2035RE 200 35 245 145 120 55 37 M36×4P
MODEL / SPEC J K L M N P
max.		 P
min.		 Q R T
L1020RE 35 231.5 145.5 86 132 45 25 6-M10×1.5P 137 46
L1225RE 45 239.5 145.5 94 140 51 26 6-M12×1.75P 145 46
L1530RE 45 248.5 143.5 105 149 56 26 12-M12×1.75P 154 46
L2035RE 60 266 142.5 123.5 166.5 69 34 12-M16×2P 171.5 46
