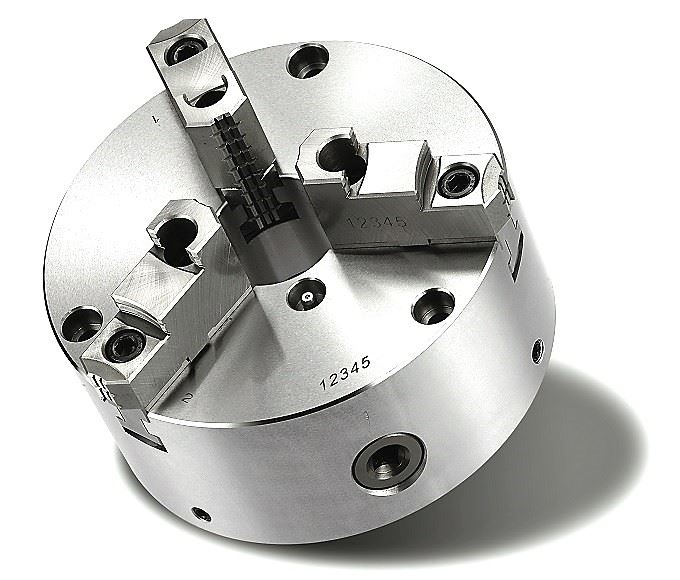

3-Jaw Powerful Adjustment Steel Body Chucks

3DAKT

3-Jaw Powerful Adjustment Steel Body Chucks

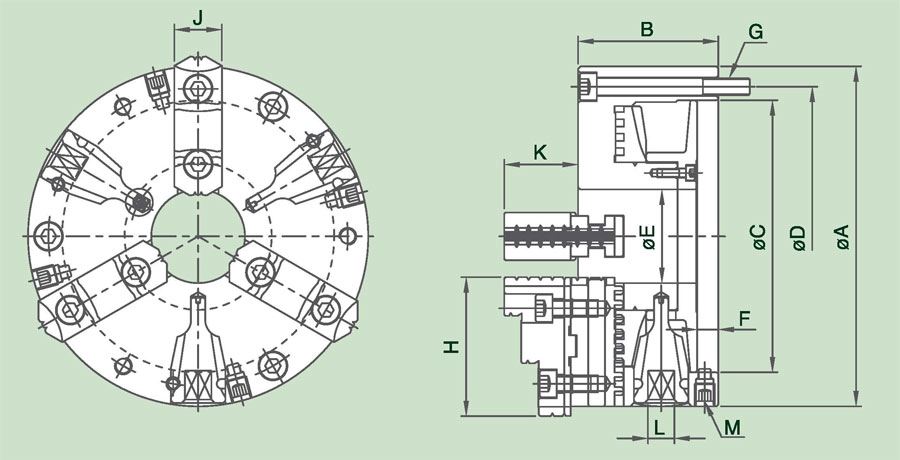

DIMENSIONS

3-Jaw Powerful Adjustment Steel Body Chucks

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Max.Speed
r.p.m(min-1)		 Max.Gripping
Diameter
O.D.Clamping		 Max.Gripping
Diameter
I.D.Clamping
3DAKT-05 4800 ø3-ø121 ø44-ø120
3DAKT-06 4200 ø8-ø169 ø50-ø158
3DAKT-08 3500 ø8-ø206 ø58-ø191
3DAKT-10 2600 ø12-ø266 ø77-ø250
3DAKT-12 2200 ø15-ø340 ø85-ø313
3DAKT-15 1600 ø30-ø440 ø123-ø416
MODEL / SPEC A B C D E F G H J K L M
3DAKT-05 125 65 95 108 32 10.5 3-M8×1.25P 57 24 36 8 4-M10×1.5P
3DAKT-06 160 72.5 125 140 42 12 3-M10×1.5P 68 26 38.5 10 4-M12×1.75P
3DAKT-08 200 82.5 160 176 55 12 3-M10×1.5P 82 28 43 11 4-M12×1.75P
3DAKT-10 250 91 200 224 76 13 3-M12×1.75P 102 35 54.5 12 4-M12×1.75P
3DAKT-12 315 103 260 286 103 14 3-M16×2P 117.5 40 56.5 14 4-M12×1.75P
3DAKT-15 400 122 330 362 136 15 3-M16×2P 150 50 74.5 17 4-M12×1.75P
