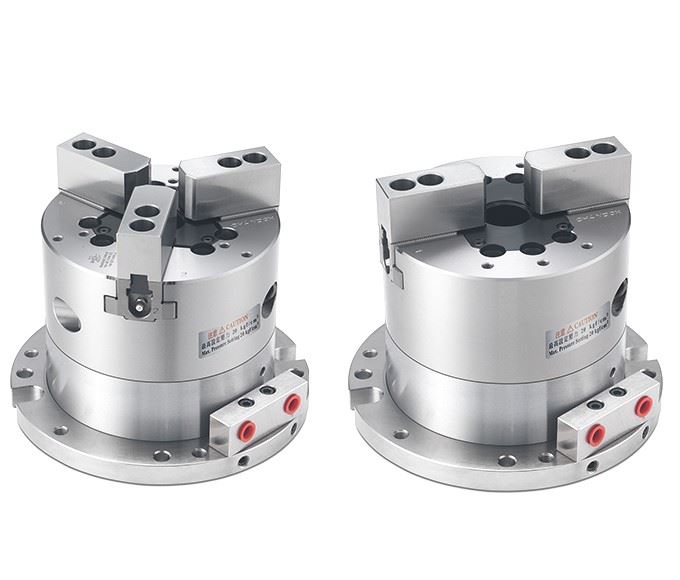

2, 3-Jaw Crank Type Long Jaw Stroke Hollow Power Chuck Fixtures

MEL,MELT

2, 3-Jaw Crank Type Long Jaw Stroke Hollow Power Chuck Fixtures

  • NEW
  1. Crank Type Long Jaw Stroke with the large through-hole.
  2. A super long jaw stroke chuck is suitable for clamping workpieces that need to avoid bulged parts.
  3. Install on the hydraulic vertical stationary cylinder to connect the hydraulic pump to actuate the clamping work.

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Thru-Hole [Diameter]
(mm)		 Piston Area
(cm2)		 Plunger Stroke
(mm)		 Jaw Stroke [Diameter]
(mm)		 Max.Gripping Force
kgf(kN)		 Max Hydr. Pressure
kgf/cm2(kN)		 Gripping Range
MEL-06 28 85 15 24 2670(26) 30(3.0) ø25~ø178
MEL-08 38 154 20 32 3900(38.2) 24(2.4) ø30~ø220
MEL-10 61 199 25 37.5 5586(54.7) 26.5(2.6) ø45~ø265
MELT-06 28 85 15 24 1790(17.6) 20(2.0) ø25~ø178
MELT-08 38 154 20 32 2600(25.5) 16(1.6) ø30~ø220
MELT-10 61 199 25 37.5 3724(36.5) 18(1.8) ø45~ø265
MODEL / SPEC Dimensional
drawing		 2D drawing 3D drawing
MEL-06
MEL-08
MEL-10
MELT-06
MELT-08
MELT-10
