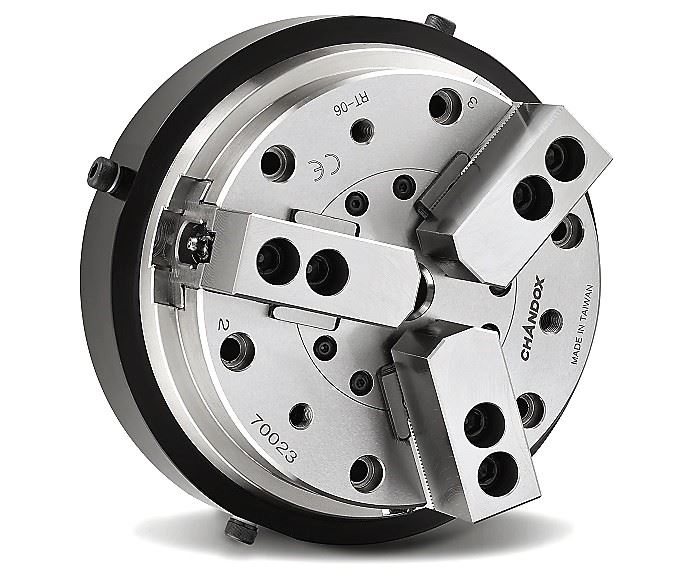

Rotary air chuck fixtures ( intermittent operation )

RT

Rotary air chuck fixtures ( intermittent operation )

INTERMITTENT OPERATION
Suitable for light cutting
It's ldeal for dividing or cutting work pieces by mounting the chuck on indexing table or rotary table. The distinctive feature is that chuck rotates with the spindle of indexing table or rotary table.
1.The chuck is designed for intermittently rotate in limited rotary speed with rotary table.
2.Rustproof treated cylinder : The cylinder won't get rusty and seized even in wet or hign moisture working environment.
3.Integral pneumatic cylinder :Connect chuck and built-in cylinder to each other directly;thus enables operation stability.Moreover,it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.

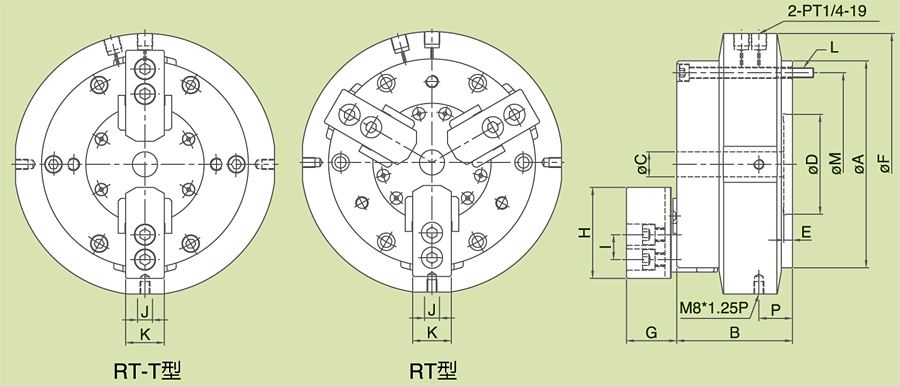

DIMENSIONS

Rotary air chuck fixtures ( intermittent operation )

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC A B C D E F G H I J K
RT-05 140 85 16 60 6 182 33.6 62 14 10 25
RT-06 170 93 20 80 7 215 40.4 73 20 12 31
RT-08 215 112 30 110 8 255 42.4 95 25 14 35
MODEL / SPEC L M N
max.		 N
min.		 O
max.		 O
min.		 P Q R
RT-05 6-M8×1.25P PCDø118 26.93 24.62 20.05 6.55 26 -- 3-M8×1.25P (PCDø92)
RT-06 6-M8×1.25P PCDø147 36.46 33.69 21.55 15.55 26 -- 3-M10×1.5P (PCDø130)
RT-08 6-M10×1.5P PCDø185 44.92 41.52 29.55 17.55 27 3-M10×1.5P (PCDø186) 3-M10×1.5P (PCDø146)
MODEL / SPEC Thru-Hole
[Diameter]
(mm)		 Piston Area
(cm2)		 Plunger
Stroke
(mm)		 Jaw Stroke
[Diameter]
(mm)		 Max.Speed
r.p.m(min-1)		 Max Hydr.
Pressure
kgf/cm2
(MPa)		 Gripping Force
At Air Pressure
7kgf/cm2(0.7MPa)
kgf(kN)		 Gripping
Range
RT-05 16 74 10 4.6 51 7(0.7) 1340(13.1) ø4~ø140
RT-06 20 120 13 5.5 41 7(0.7) 2330(22.8) ø25~ø170
RT-08 30 190 16 6.8 33 7(0.7) 3730(36.5) ø33~ø215

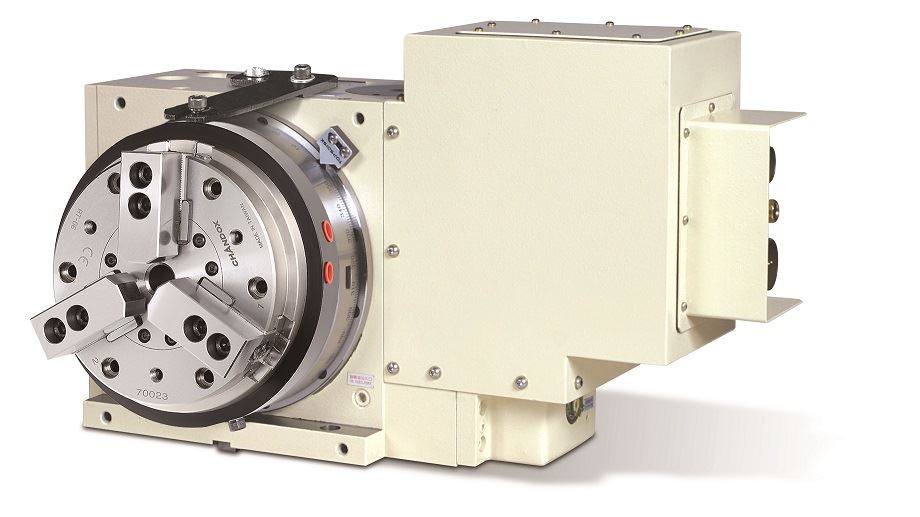

OPERATION EXAMPLE
