  3. Hydraulic Chucks

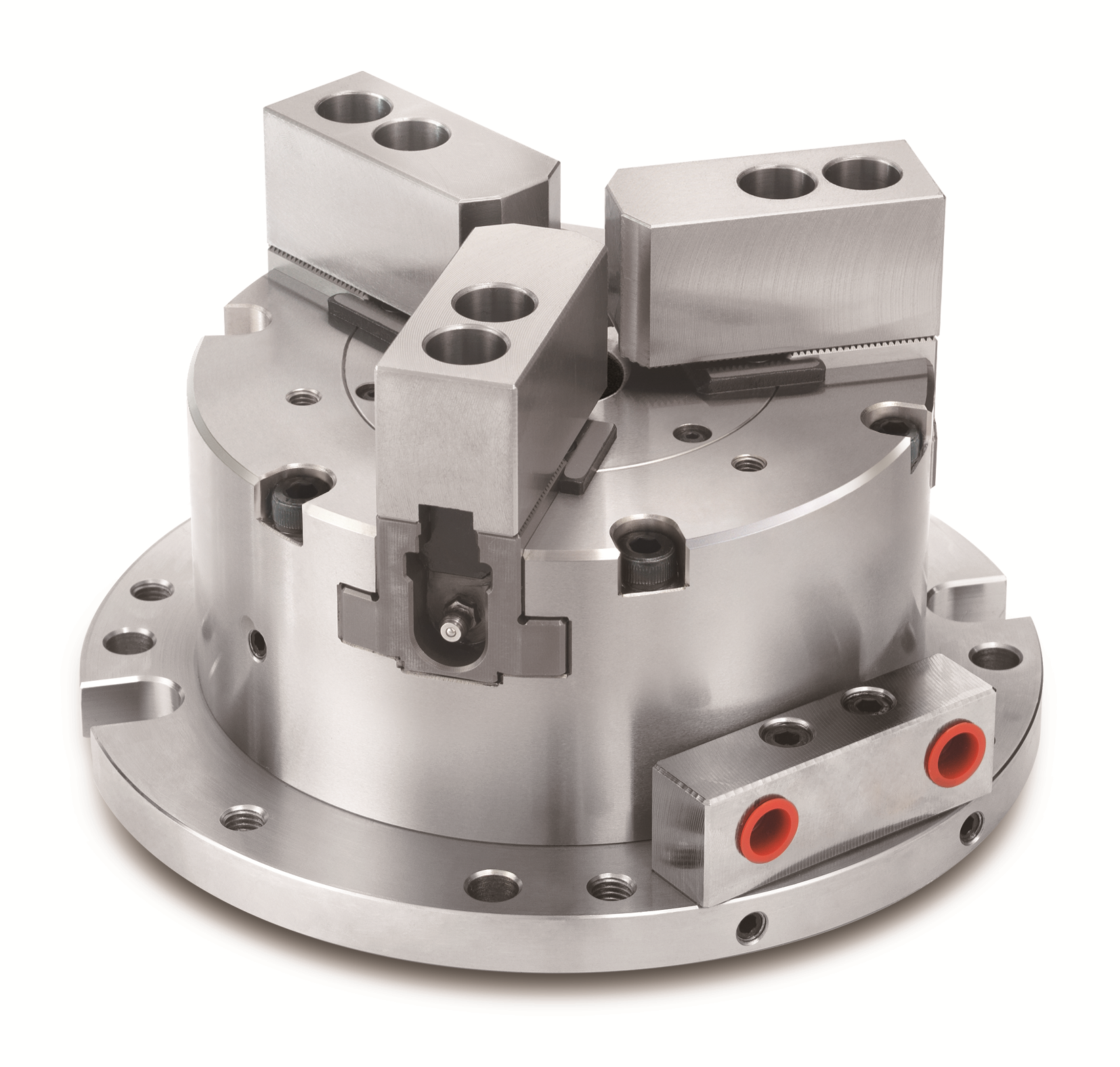

HOLLOW POWER CHUCK FIXTURES (8

MP-M(8"~12")

HOLLOW POWER CHUCK FIXTURES (8"~12")

  • NEW
1.Compact design:Reduces chuck height to maximize machining space.
2.Modularized design:Integrates with baseplates for array configurations,boosting machining efficiency.
3.Dust-Proof structure: Comprehensive  dust protection extends service life and maintatins precision.
4.Built-in Cylinder design:The integrated chuck and cylinder design ensures clamping stabiliy while cnhancing force and accuracy.

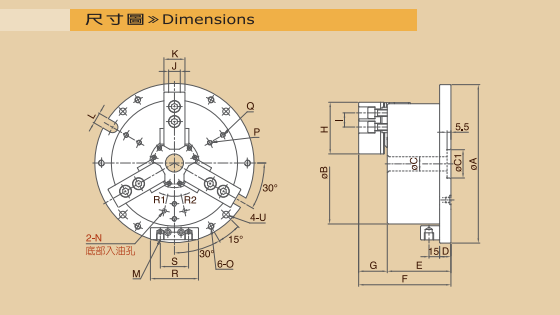

DIMENSIONS

HOLLOW POWER CHUCK FIXTURES (8

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Piston Area
(cm2)		 Plunger
Stroke
(mm)		 Jaw Stroke
[Diameter]
(mm)		 Max.Gripping
Force
kgf (kN)		 Max Hydr.
Pressure
kgf/cm2(MPa)		 Gripping
Range
MP-08-M 173 14 7.4 7700(75.5) 20(2.0) ø31~ø215
MP-10-M 248 16 8.5 11100(108.9) 20(2.0) ø45~ø255
MP-12-M 352 20 10.6 15000(147.0) 20(2.0) ø46~ø304
MODEL / SPEC A B C C1 D E F G
MP-08-M 265 215 30 50 18 110 152.5 42.5
MP-10-M 315 255 43 70 18 116 162.5 46.5
MP-12-M 375 304 52 80 22 135 189 54
MODEL / SPEC H I J K L M S
MP-08-M 95 25 14 35 18 2-PT1/4 47
MP-10-M 110 30 16 40 18 2-PT1/4 47
MP-12-M 129 30 18 50 21 2-PT3/8 55
MODEL / SPEC R P Q U O N R1 R2
MP-08-M 60 3-M10x1.5P (PCDø136) 3-M10x1.5P (PCDø186) ø11 (PCDø243) M10x1.5P (PCDø243) P8 (PCDø108) 11.5° 11.5°
MP-10-M 80 3-M12x1.75P (PCDø170) 3-M12x1.75P (PCDø230) ø13 (PCDø285) M12x1.75P (PCDø285) P8 (PCDø145) 9.5° 9.5°
MP-12-M 80 3-M12x1.75P (PCDø200) 3-M12x1.75P (PCDø260) ø17 (PCDø340) M16x2P (PCDø340) P10 (PCDø170) 9.5° 9.5°
