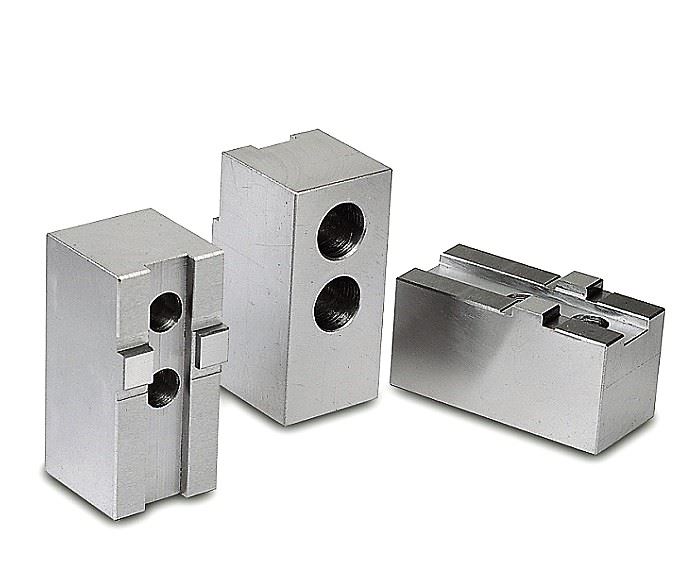

Soft Jaws For Pull Back Power Chucks

S

Soft Jaws For Pull Back Power Chucks

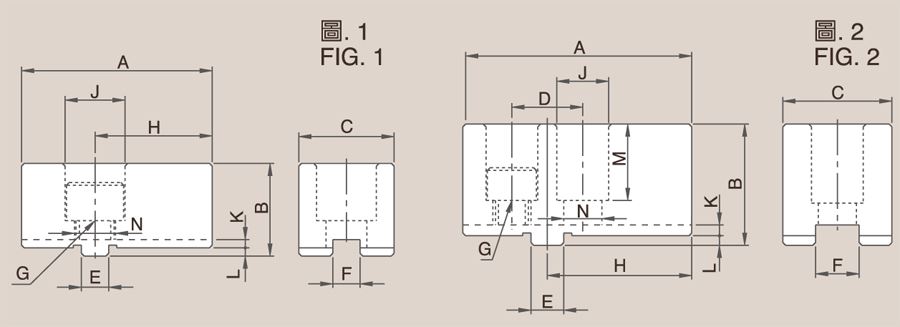

DIMENSIONS

Soft Jaws For Pull Back Power Chucks

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC A B C D E F G H J K L M N Reference Drawing
S-06 70 34 35 -- 10 10 M14×2P 43 23 3.0 3.0 21 15.5 圖-1 Fig.1
S-08 84 44.5 40 26 12 16 M12×1.75P 53 20 3.5 3.5 29 13.5 圖-2 Fig.2
S-10 100 49.5 50 32 15 18 M14×2P 62 23 3.5 3.5 32 15.5 圖-2 Fig.2
S-12 120 54.5 60 36 17 20 M16×2P 78 26 3.5 3.5 36 17.5 圖-2 Fig.2
